Spring Boot Microservices and RESTful Web Services Tutorial for Beginners

blog details
author Ranga Karanam October 16, 2022 45 minutes

Learn how to create awesome Microservices and RESTful Web Services with Spring and Spring Boot.

Developing RESTful web services is fun. The combination of Spring Boot, Spring Web MVC, Spring Web Services and JPA makes it even more fun. And its even more fun to create Microservices.

There are two parts to this course - RESTful web services and Microservices

Part 1 - RESTful Web Services

Architectures are moving towards microservices.

RESTful web services are the first step to developing great microservices. Spring Boot, in combination with Spring Web MVC (also called Spring REST) makes it easy to develop RESTful web services.

In the first part of the course, you will learn the basics of RESTful web services developing resources for a social media application. You will learn to implement these resources with multiple features - versioning, exception handling, documentation (Swagger), basic authentication (Spring Security), filtering and HATEOAS. You will learn the best practices in designing RESTful web services.

In this part of the course, you will be using Spring (Dependency Management), Spring MVC (or Spring REST), Spring Boot, Spring Security (Authentication and Authorization), Spring Boot Actuator (Monitoring), Swagger (Documentation), Maven (dependencies management), Eclipse (IDE), Postman (REST Services Client) and Tomcat Embedded Web Server. We will help you set up each one of these.

Part 2 - Microservices

In the second part of the course, you will learn the basics of Microservices. You will understand how to implement microservices using Spring Cloud.

In this part of the course, you will learn to establish communication between microservices, enable load balancing, scaling up and down of microservices. You will also learn to centralize configuration of microservices with Spring Cloud Config Server. You will implement Eureka Naming Server and Distributed tracing with Spring Cloud Sleuth and Zipkin. You will create fault toleranct microservices with Zipkin

What You will learn

  • You will be able to develop and design RESTful web services
  • You will setup Centralized Microservice Configuration with Spring Cloud Config Server
  • You will understand how to implement Exception Handling, Validation, HATEOAS and filtering for RESTful Web Services.
  • You will implement client side load balancing (Ribbon), Dynamic scaling(Eureka Naming Server) and an API Gateway (Zuul)
  • You will learn to implement Distributed tracing for microservices with Spring Cloud Sleuth and Zipkin
  • You will implement Fault Tolerance for microservices with Zipkin
  • You will understand how to version your RESTful Web Services
  • You will understand how to monitor RESTful Services with Spring Boot Actuator
  • You will understand how to document RESTful Web Services with Swagger
  • You will understand the best practices in designing RESTful web services
  • Using Spring Cloud Bus to exchange messages about Configuration updates
  • Simplify communication with other Microservices using Feign REST Client

Getting Started

Installing Tools

Running Examples

  • Download the zip or clone the Git repository.
  • Unzip the zip file (if you downloaded one)
  • Open Command Prompt and Change directory (cd) to folder containing pom.xml
  • Open Eclipse
    • File -> Import -> Existing Maven Project -> Navigate to the folder where you unzipped the zip
    • Select the right project
  • Choose the Spring Boot Application file (search for @SpringBootApplication)
  • Right Click on the file and Run as Java Application
  • You are all Set
  • For help : use our installation guide - https://www.youtube.com/playlist?list=PLBBog2r6uMCSmMVTW_QmDLyASBvovyAO3

Course Overview

Title Category Github
Introduction To Web Services None
Restful Web Services with Spring Boot Project Folder on Github
Microservices with Spring Cloud Project Folder on Github

2 Bonus Sections - Introduction to Spring Boot and JPA

Title Category Github
Spring Boot in 10 Steps Introduction Project Folder on Github
JPA in 10 Steps Introduction Project Folder on Github

Step By Step Details

Introductory Modules

These sections are in the Appendix. If you are new to Spring Boot or JPA, Do not forget to check these out!

  • First 10 Steps in JPA
  • First 10 Steps in Spring Boot

Introduction to Web Services

  • What is a Web Service?
  • Important How Questions related to Web Services
  • Web Services - Key Terminology
  • Introduction to SOAP Web Services
  • Introduction to RESTful Web Services
  • SOAP vs RESTful Web Services

Restful Web Services with Spring Boot

  • Step 01 - Initializing a RESTful Services Project with Spring Boot
  • Step 02 - Understanding the RESTful Services we would create in this course
  • Step 03 - Creating a Hello World Service
  • Step 04 - Enhancing the Hello World Service to return a Bean
  • Step 05 - Quick Review of Spring Boot Auto Configuration and Dispatcher Servlet
  • Step 06 - Enhancing the Hello World Service with a Path Variable
  • Step 07 - Creating User Bean and User Service
  • Step 08 - Implementing GET Methods for User Resource
  • Step 09 - Implementing POST Method to create User Resource
  • Step 10 - Enhancing POST Method to return correct HTTP Status Code and Location
  • Step 11 - Implementing Exception Handling - 404 Resource Not Found
  • Step 12 - Implementing Generic Exception Handling for all Resources
  • Step 13 - Exercise : User Post Resource and Exception Handling
  • Step 14 - Implementing DELETE Method to delete a User Resource
  • Step 15 - Implementing Validations for RESTful Services
  • Step 16 - Implementing HATEOAS for RESTful Services
  • Step 17 - Overview of Advanced RESTful Service Features
  • Step 18 - Internationalization for RESTful Services
  • Step 19 - Content Negotiation - Implementing Support for XML
  • Step 20 - Configuring Auto Generation of Swagger Documentation
  • Step 21 - Introduction to Swagger Documentation Format
  • Step 22 - Enhancing Swagger Documentation with Custom Annotations
  • Step 23 - Monitoring APIs with Spring Boot Actuator
  • Step 24 - Implementing Static Filtering for RESTful Service
  • Step 25 - Implementing Dynamic Filtering for RESTful Service
  • Step 26 - Versioning RESTful Services - Basic Approach with URIs
  • Step 27 - Versioning RESTful Services - Header and Content Negotiation Approach
  • Step 28 - Implementing Basic Authentication with Spring Security
  • Step 29 - Overview of Connecting RESTful Service to JPA
  • Step 30 - Creating User Entity and some test data
  • Step 31 - Updating GET methods on User Resource to use JPA
  • Step 32 - Updating POST and DELETE methods on User Resource to use JPA
  • Step 33 - Creating Post Entity and Many to One Relationship with User Entity
  • Step 34 - Implementing a GET service to retrieve all Posts of a User
  • Step 35 - Implementing a POST service to create a Post for a User
  • Step 36 - Richardson Maturity Model
  • Step 37 - RESTful Web Services - Best Practices

Microservices with Spring Cloud

  • Step 00 - 01 - Introduction to Microservices
  • Step 00 - 02 - Challenges with Microservices
  • Step 00 - 03 - Introduction to Spring Cloud
  • Step 00 - 04 - Advantages of Microservices Architectures
  • Step 00 - 05 - Microservice Components - Standardizing Ports and URL
  • Step 01 - Part 1 - Introduction to Limits Microservice and Spring Cloud Config Server
  • Step 01 - Part 2 - Setting up Limits Microservice
  • Step 02 - Creating a hard coded limits service
  • Step 03 - Enhance limits service to pick up configuration from application properties

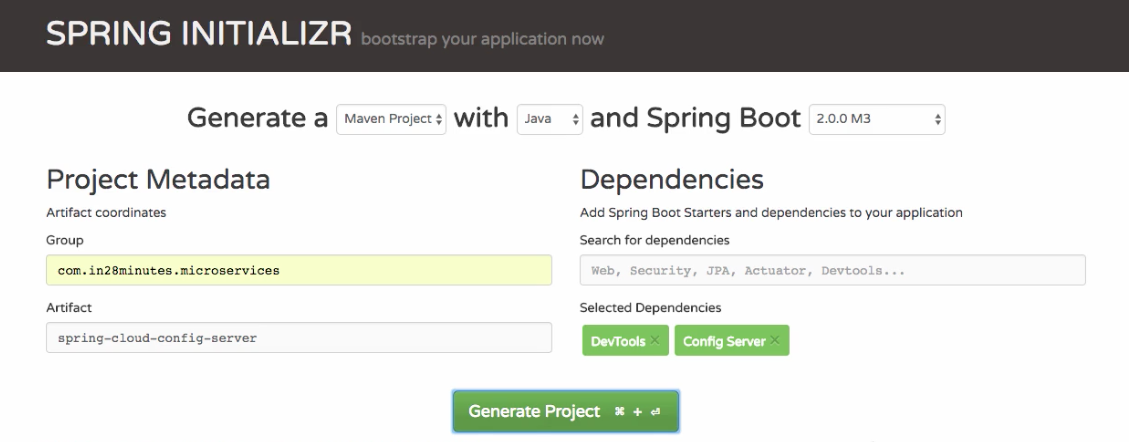

  • Step 04 - Setting up Spring Cloud Config Server
  • Step 05 - Installing Git
  • Step 06 - Creating Local Git Repository
  • Step 07 - Connect Spring Cloud Config Server to Local Git Repository
  • Step 08 - Configuration for Multiple Environments in Git Repository
  • Step 09 - Connect Limits Service to Spring Cloud Config Server
  • Step 10 - Configuring Profiles for Limits Service
  • Step 11 - A review of Spring Cloud Config Server

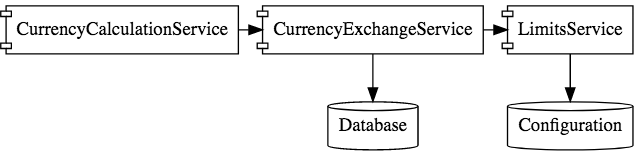

  • Step 12 - Introduction to Currency Conversion and Currency Exchange Microservices

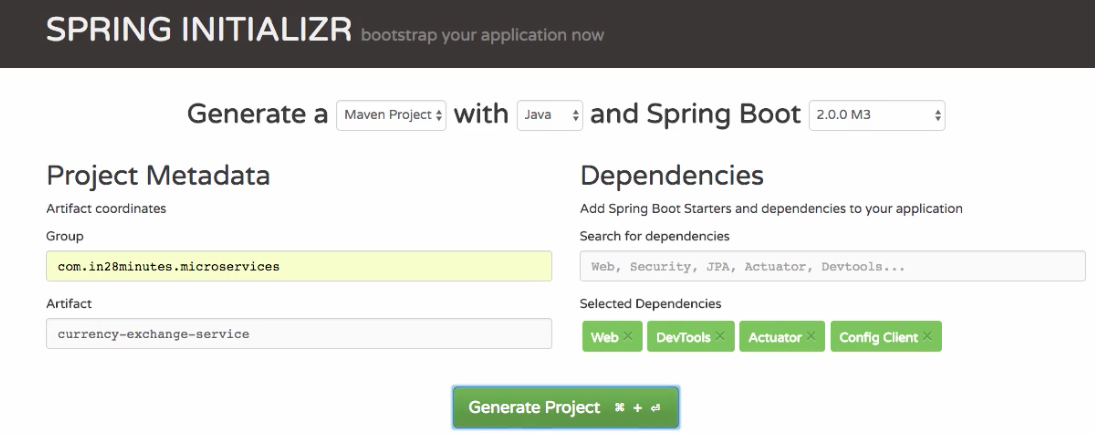

  • Step 13 - Setting up Currency Exchange Microservice
  • Step 14 - Create a simple hard coded currency exchange service
  • Step 15 - Setting up Dynamic Port in the the Response
  • Step 16 - Configure JPA and Initialized Data
  • Step 17 - Create a JPA Repository

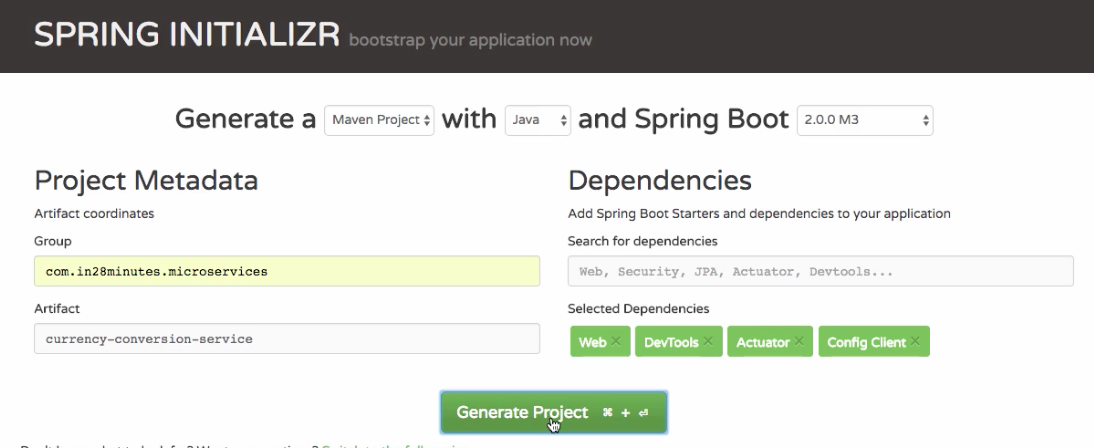

  • Step 18 - Setting up Currency Conversion Microservice
  • Step 19 - Creating a service for currency conversion
  • Step 20 - Invoking Currency Exchange Microservice from Currency Conversion Microservice
  • Step 21 - Using Feign REST Client for Service Invocation

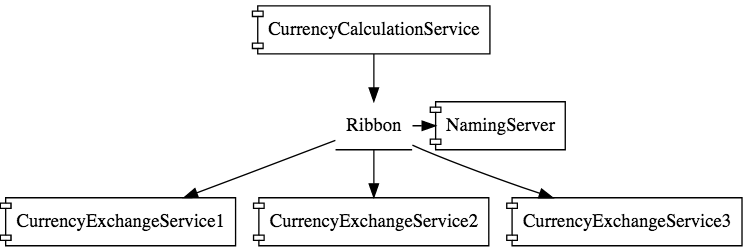

  • Step 22 - Setting up client side load balancing with Ribbon
  • Step 23 - Running client side load balancing with Ribbon
  • Step 24 - Understand the need for a Naming Server

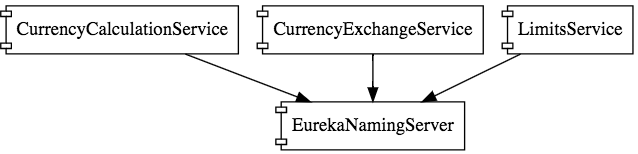

  • Step 25 - Setting up Eureka Naming Server
  • Step 26 - Connecting Currency Conversion Microservice to Eureka
  • Step 27 - Connecting Currency Exchange Microservice to Eureka
  • Step 28 - Distributing calls using Eureka and Ribbon
  • Step 29 - A review of implementing Eureka, Ribbon and Feign
  • Step 30 - Introduction to API Gateways
  • Step 31 - Setting up Zuul API Gateway
  • Step 32 - Implementing Zuul Logging Filter
  • Step 33 - Executing a request through Zuul API Gateway
  • Step 34 - Setting up Zuul API Gateway between microservice invocations
  • Step 35 - Introduction to Distributed Tracing
  • Step 36 - Implementing Spring Cloud Sleuth
  • Step 37 - Introduction to Distributed Tracing with Zipkin
  • Step 38 - Installing Rabbit MQ
  • Step 39 - Setting up Distributed Tracing with Zipkin
  • Step 40 - Connecting microservices to Zipkin
  • Step 41 - Using Zipkin UI Dashboard to trace requests
  • Step 42 - Understanding the need for Spring Cloud Bus
  • Step 43 - Implementing Spring Cloud Bus
  • Step 44 - Fault Tolerance with Hystrix
  • Step 99 - FAQ 01 - Microservices Characteristics
  • Step 99 - FAQ 02 - What do you do next?

Course Details

02 - RESTful Web Services with Spring Boot

Building RESTful web services with Spring Boot is fun. In this section, we will discover why Spring, Spring MVC and Spring Boot is becoming the best framework combination to develop RESTful web services.

You will learn

  • What is a RESTful Web Service?
  • How to implement RESTful Web Services with Spring and Spring Boot?
  • What are the best practices in designing RESTful Web Services?
  • How to design Resources and GET, POST and DELETE operations?
  • How to implement Validation for RESTful Web Services?
  • How to implement Exception Handling for RESTful Web Services?
  • What is HATEOAS? How to implement HATEOAS for a Resource?
  • What are the different approach in versioning RESTful Services?
  • How to use Postman to execute RESTful Service Requests?
  • How to implement basic authentication with Spring Security?
  • How to implement filtering for RESTful Services?
  • How to monitor RESTful Services with Spring Boot Actuator?
  • How to document RESTful Web Services with Swagger?
  • How to connect RESTful Services to a backend with JPA?
  • POSTMAN - http://www.getpostman.com
  • Basic Resources
    • http://localhost:8080/hello-world
    • http://localhost:8080/hello-world-bean
    • http://localhost:8080/hello-world/path-variable/Ranga
    • http://localhost:8080/users/
    • http://localhost:8080/users/1
  • JPA Resources
    • http://localhost:8080/jpa/users/
    • http://localhost:8080/jpa/users/1
    • http://localhost:8080/jpa/users/10001/posts
  • Filtering
    • http://localhost:8080/filtering
    • http://localhost:8080/filtering-list
  • Actuator
    • http://localhost:8080/actuator
  • Versioning
    • http://localhost:8080/v1/person
    • http://localhost:8080/v2/person
    • http://localhost:8080/person/param
      • params=[version=1]
    • http://localhost:8080/person/param
      • params=[version=2]
    • http://localhost:8080/person/header
      • headers=[X-API-VERSION=1]
    • http://localhost:8080/person/header
      • headers=[X-API-VERSION=2]
    • http://localhost:8080/person/produces
      • produces=[application/vnd.company.app-v1+json]
    • http://localhost:8080/person/produces
      • produces=[application/vnd.company.app-v2+json]
  • Swagger
    • http://localhost:8080/swagger-ui.html
    • http://localhost:8080/v2/api-docs
  • H2-Console
    • http://localhost:8080/h2-console
Error in the Log
Resolved exception caused by Handler execution:
org.springframework.http.converter.HttpMessageNotWritableException:
No converter found for return value of type:
class com.in28minutes.rest.webservices.restfulwebservices.HelloWorldBean
  • This happened because there were no getters in HelloWorldBean class
Questions to Answer
  • What is dispatcher servlet?
  • Who is configuring dispatcher servlet?
  • What does dispatcher servlet do?
  • How does the HelloWorldBean object get converted to JSON?
  • Who is configuring the error mapping?

  • Mapping servlet: ‘dispatcherServlet’ to [/]

  • Mapped “{[/hello-world],methods=[GET]}” onto public java.lang.String com.in28minutes.rest.webservices.restfulwebservices.HelloWorldController.helloWorld()
  • Mapped “{[/hello-world-bean],methods=[GET]}” onto public com.in28minutes.rest.webservices.restfulwebservices.HelloWorldBean com.in28minutes.rest.webservices.restfulwebservices.HelloWorldController.helloWorldBean()
  • Mapped “{[/error]}” onto public org.springframework.http.ResponseEntity<java.util.Map<java.lang.String, java.lang.Object» org.springframework.boot.autoconfigure.web.servlet.error.BasicErrorController.error(javax.servlet.http.HttpServletRequest)
  • Mapped “{[/error],produces=[text/html]}” onto public org.springframework.web.servlet.ModelAndView org.springframework.boot.autoconfigure.web.servlet.error.BasicErrorController.errorHtml(javax.servlet.http.HttpServletRequest,javax.servlet.http.HttpServletResponse)

Example Requests

GET http://localhost:8080/users

[
    {
        "id": 1,
        "name": "Adam",
        "birthDate": "2017-07-19T04:40:20.796+0000"
    },
    {
        "id": 2,
        "name": "Eve",
        "birthDate": "2017-07-19T04:40:20.796+0000"
    },
    {
        "id": 3,
        "name": "Jack",
        "birthDate": "2017-07-19T04:40:20.796+0000"
    }
]

GET http://localhost:8080/users/1

{
    "id": 1,
    "name": "Adam",
    "birthDate": "2017-07-19T04:40:20.796+0000"
}

POST http://localhost:8080/users

{
    "name": "Ranga",
    "birthDate": "2000-07-19T04:29:24.054+0000"
}

GET http://localhost:8080/users/1000

  • Get request to a non existing resource.
  • The response shows default error message structure auto configured by Spring Boot.
{
    "timestamp": "2017-07-19T05:28:37.534+0000",
    "status": 404,
    "error": "Not Found",
    "message": "id-500",
    "path": "/users/500"
}

GET http://localhost:8080/users/1000

  • Get request to a non existing resource.
  • The response shows a Customized Message Structure
    {
      "timestamp": "2017-07-19T05:31:01.961+0000",
      "message": "id-500",
      "details": "Any details you would want to add"
    }


POST http://localhost:8080/users with Validation Errors

Request
{
    "name": "R",
    "birthDate": "2000-07-19T04:29:24.054+0000"
}
Response - 400 Bad Request
{
    "timestamp": "2017-07-19T09:00:27.912+0000",
    "message": "Validation Failed",
    "details": "org.springframework.validation.BeanPropertyBindingResult: 1 errors\nField error in object 'user' on field 'name': rejected value [R]; codes [Size.user.name,Size.name,Size.java.lang.String,Size]; arguments [org.springframework.context.support.DefaultMessageSourceResolvable: codes [user.name,name]; arguments []; default message [name],2147483647,2]; default message [Name should have atleast 2 characters]"
}

GET http://localhost:8080/users/1 with HATEOAS

{
    "id": 1,
    "name": "Adam",
    "birthDate": "2017-07-19T09:26:18.337+0000",
    "_links": {
        "all-users": {
            "href": "http://localhost:8080/users"
        }
    }
}

XML Representation of Resources

GET http://localhost:8080/users

  • Accept application/xml
<List>
    <item>
        <id>2</id>
        <name>Eve</name>
        <birthDate>2017-07-19T10:25:20.450+0000</birthDate>
    </item>
    <item>
        <id>3</id>
        <name>Jack</name>
        <birthDate>2017-07-19T10:25:20.450+0000</birthDate>
    </item>
    <item>
        <id>4</id>
        <name>Ranga</name>
        <birthDate>2017-07-19T10:25:20.450+0000</birthDate>
    </item>
</List>

POST http://localhost:8080/users

  • Accept : application/xml
  • Content-Type : application/xml

Request

<item>
        <name>Ranga</name>
        <birthDate>2017-07-19T10:25:20.450+0000</birthDate>
</item>

Response

  • Status - 201 Created

Generating Swagger Documentation

  public static final Contact DEFAULT_CONTACT = new Contact(
      "Ranga Karanam", "http://www.in28minutes.com", "[email protected]");

  public static final ApiInfo DEFAULT_API_INFO = new ApiInfo(
      "Awesome API Title", "Awesome API Description", "1.0",
      "urn:tos", DEFAULT_CONTACT,
      "Apache 2.0", "http://www.apache.org/licenses/LICENSE-2.0");

  private static final Set<String> DEFAULT_PRODUCES_AND_CONSUMES =
      new HashSet<String>(Arrays.asList("application/json",
          "application/xml"));

  @Bean
  public Docket api() {
    return new Docket(DocumentationType.SWAGGER_2)
        .apiInfo(DEFAULT_API_INFO)
        .produces(DEFAULT_PRODUCES_AND_CONSUMES)
        .consumes(DEFAULT_PRODUCES_AND_CONSUMES);
  }

Resource Method description

  @GetMapping("/users/{id}")
  @ApiOperation(value = "Finds Users by id",
    notes = "Also returns a link to retrieve all users with rel - all-users")
  public Resource<User> retrieveUser(@PathVariable int id) {

API Model


@ApiModel(value="User Details", description="Contains all details of a user")
public class User {

  @Size(min=2, message="Name should have atleast 2 characters")
  @ApiModelProperty(notes = "Name should have atleast 2 characters")
  private String name;

  @Past
  @ApiModelProperty(notes = "Birth Date should be in the Past")
  private Date birthDate;

Filtering

Code
@JsonIgnoreProperties(value={"field1"})
public class SomeBean {

  private String field1;

  @JsonIgnore
  private String field2;

  private String field3;

Response
{
    "field3": "value3"
}

Versioning

  • Media type versioning (a.k.a “content negotiation” or “accept header”)
    • GitHub
  • (Custom) headers versioning
    • Microsoft
  • URI Versioning
    • Twitter
  • Request Parameter versioning
    • Amazon
  • Factors
  • URI Pollution
  • Misuse of HTTP Headers
  • Caching
  • Can we execute the request on the browser?
  • API Documentation
  • No Perfect Solution
More
  • https://www.mnot.net/blog/2011/10/25/web_api_versioning_smackdown
  • http://urthen.github.io/2013/05/09/ways-to-version-your-api/
  • http://stackoverflow.com/questions/389169/best-practices-for-api-versioning
  • http://www.lexicalscope.com/blog/2012/03/12/how-are-rest-apis-versioned/
  • https://www.3scale.net/2016/06/api-versioning-methods-a-brief-reference/

Table Structure

create table user (
id integer not null,
birth_date timestamp,
name varchar(255),
primary key (id)
);

create table post (
id integer not null,
description varchar(255),
user_id integer,
primary key (id)
);

alter table post
add constraint post_to_user_foreign_key
foreign key (user_id) references user;

Step 01 - Initializing a RESTful Services Project with Spring Boot

Creating a Spring Project with Spring Initializr is a cake walk.

Spring Initializr http://start.spring.io/ is great tool to bootstrap your Spring Boot projects.


As shown in the image above, following steps have to be done

  • Launch Spring Initializr and choose the following
    • Choose com.in28minutes.rest.webservices as Group
    • Choose restful-web-services as Artifact
    • Choose Release >= 2.0.0 (Avoid SNAPSHOT!)
    • Choose following dependencies
      • Web
      • DevTools
      • JPA
      • H2
  • Click Generate Project.
  • Import the project into Eclipse.
  • If you want to understand all the files that are part of this project, you can go here.

    Step 02 - Understanding the RESTful Services we would create in this course

Social Media Application Resource Mappings

User -> Posts
  • Retrieve all Users - GET /users
  • Create a User - POST /users
  • Retrieve one User - GET /users/{id} -> /users/1
  • Delete a User - DELETE /users/{id} -> /users/1

  • Retrieve all posts for a User - GET /users/{id}/posts
  • Create a posts for a User - POST /users/{id}/posts
  • Retrieve details of a post - GET /users/{id}/posts/{post_id}

Step 03 - Creating a Hello World Service

@RestController
public class HelloWorldController {

  @GetMapping(path = "/hello-world")
  public String helloWorld() {
    return "Hello World";
  }
}

Step 04 - Enhancing the Hello World Service to return a Bean

  @GetMapping(path = "/hello-world-bean")
  public HelloWorldBean helloWorldBean() {
    return new HelloWorldBean("Hello World");
  }
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/HelloWorldBean.java New
package com.in28minutes.rest.webservices.restfulwebservices;

public class HelloWorldBean {

  private String message;

  public HelloWorldBean(String message) {
    this.message = message;
  }

  public String getMessage() {
    return message;
  }

  public void setMessage(String message) {
    this.message = message;
  }

  @Override
  public String toString() {
    return String.format("HelloWorldBean [message=%s]", message);
  }

}

Step 05 - Quick Review of Spring Boot Auto Configuration and Dispatcher Servlet

Let us understand Spring Boot Auto Configuration in depth - http://www.springboottutorial.com/spring-boot-auto-configuration

Step 06 - Enhancing the Hello World Service with a Path Variable


/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/HelloWorldController.java
package com.in28minutes.rest.webservices.restfulwebservices;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;

//Controller
@RestController
public class HelloWorldController {

  @GetMapping(path = "/hello-world")
  public String helloWorld() {
    return "Hello World";
  }

  @GetMapping(path = "/hello-world-bean")
  public HelloWorldBean helloWorldBean() {
    return new HelloWorldBean("Hello World");
  }

  ///hello-world/path-variable/in28minutes
  @GetMapping(path = "/hello-world/path-variable/{name}")
  public HelloWorldBean helloWorldPathVariable(@PathVariable String name) {
    return new HelloWorldBean(String.format("Hello World, %s", name));
  }

}

/src/main/resources/application.properties Modified

New Lines

logging.level.org.springframework = info

Step 07 - Creating User Bean and User Service

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/HelloWorldBean.java

Package Change

package com.in28minutes.rest.webservices.restfulwebservices.helloworld;
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/HelloWorldController.java

Package Change

package com.in28minutes.rest.webservices.restfulwebservices.helloworld;
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/User.java New

package com.in28minutes.rest.webservices.restfulwebservices.user;

import java.util.Date;

public class User {

  private Integer id;

  private String name;

  private Date birthDate;

  public User(Integer id, String name, Date birthDate) {
    super();
    this.id = id;
    this.name = name;
    this.birthDate = birthDate;
  }

  public Integer getId() {
    return id;
  }

  public void setId(Integer id) {
    this.id = id;
  }

  public String getName() {
    return name;
  }

  public void setName(String name) {
    this.name = name;
  }

  public Date getBirthDate() {
    return birthDate;
  }

  public void setBirthDate(Date birthDate) {
    this.birthDate = birthDate;
  }

  @Override
  public String toString() {
    return String.format("User [id=%s, name=%s, birthDate=%s]", id, name, birthDate);
  }

}

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/UserDaoService.java New
package com.in28minutes.rest.webservices.restfulwebservices.user;

import java.util.ArrayList;
import java.util.Date;
import java.util.List;

import org.springframework.stereotype.Component;

@Component
public class UserDaoService {
  private static List<User> users = new ArrayList<>();

  private static int usersCount = 3;

  static {
    users.add(new User(1, "Adam", new Date()));
    users.add(new User(2, "Eve", new Date()));
    users.add(new User(3, "Jack", new Date()));
  }

  public List<User> findAll() {
    return users;
  }

  public User save(User user) {
    if (user.getId() == null) {
      user.setId(++usersCount);
    }
    users.add(user);
    return user;
  }

  public User findOne(int id) {
    for (User user : users) {
      if (user.getId() == id) {
        return user;
      }
    }
    return null;
  }

}

Step 08 - Implementing GET Methods for User Resource

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/UserResource.java New
package com.in28minutes.rest.webservices.restfulwebservices.user;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class UserResource {

  @Autowired
  private UserDaoService service;

  @GetMapping("/users")
  public List<User> retrieveAllUsers() {
    return service.findAll();
  }

  @GetMapping("/users/{id}")
  public User retrieveUser(@PathVariable int id) {
    return service.findOne(id);
  }

}

/src/main/resources/application.properties Modified

New Lines

#This is not really needed as this is the default after 2.3.1.RELEASE
spring.jackson.serialization.write-dates-as-timestamps=false

Step 09 - Implementing POST Method to create User Resource

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/UserResource.java Modified
  // input - details of user
  // output - CREATED & Return the created URI
  @PostMapping("/users")
  public void createUser(@RequestBody User user){
    User savedUser = service.save(user);
  }

Step 10 - Enhancing POST Method to return correct HTTP Status Code and Location

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/UserResource.java Modified
  // input - details of user
  // output - CREATED & Return the created URI
  @PostMapping("/users")
  public ResponseEntity<Object> createUser(@RequestBody User user) {
    User savedUser = service.save(user);
    // CREATED
    // /user/{id}     savedUser.getId()

    URI location = ServletUriComponentsBuilder
      .fromCurrentRequest()
      .path("/{id}")
      .buildAndExpand(savedUser.getId()).toUri();

    return ResponseEntity.created(location).build();

  }

Step 11 - Implementing Exception Handling - 404 Resource Not Found

Step 12 - Implementing Generic Exception Handling for all Resources

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/exception/CustomizedResponseEntityExceptionHandler.java New
package com.in28minutes.rest.webservices.restfulwebservices.exception;

import java.util.Date;

import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.ControllerAdvice;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.context.request.WebRequest;
import org.springframework.web.servlet.mvc.method.annotation.ResponseEntityExceptionHandler;

import com.in28minutes.rest.webservices.restfulwebservices.user.UserNotFoundException;

@ControllerAdvice
@RestController
public class CustomizedResponseEntityExceptionHandler extends ResponseEntityExceptionHandler {

  @ExceptionHandler(Exception.class)
  public final ResponseEntity<Object> handleAllExceptions(Exception ex, WebRequest request) {
    ErrorDetails errorDetails = new ErrorDetails(new Date(), ex.getMessage(),
        request.getDescription(false));
    return new ResponseEntity(errorDetails, HttpStatus.INTERNAL_SERVER_ERROR);
  }

  @ExceptionHandler(UserNotFoundException.class)
  public final ResponseEntity<Object> handleUserNotFoundException(UserNotFoundException ex, WebRequest request) {
    ErrorDetails errorDetails = new ErrorDetails(new Date(), ex.getMessage(),
        request.getDescription(false));
    return new ResponseEntity(errorDetails, HttpStatus.NOT_FOUND);
  }

}

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/exception/ErrorDetails.java New
package com.in28minutes.rest.webservices.restfulwebservices.exception;

import java.util.Date;

public class ErrorDetails {
  private Date timestamp;
  private String message;
  private String details;

  public ErrorDetails(Date timestamp, String message, String details) {
    super();
    this.timestamp = timestamp;
    this.message = message;
    this.details = details;
  }

  public Date getTimestamp() {
    return timestamp;
  }

  public String getMessage() {
    return message;
  }

  public String getDetails() {
    return details;
  }

}

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/UserNotFoundException.java New
package com.in28minutes.rest.webservices.restfulwebservices.user;

import org.springframework.http.HttpStatus;
import org.springframework.web.bind.annotation.ResponseStatus;

@ResponseStatus(HttpStatus.NOT_FOUND)
public class UserNotFoundException extends RuntimeException {
  public UserNotFoundException(String message) {
    super(message);
  }
}

Step 13 - Exercise : User Post Resource and Exception Handling

Step 14 - Implementing DELETE Method to delete a User Resource

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/UserDaoService.java Modified
  public User deleteById(int id) {
    Iterator<User> iterator = users.iterator();
    while (iterator.hasNext()) {
      User user = iterator.next();
      if (user.getId() == id) {
        iterator.remove();
        return user;
      }
    }
    return null;
  }


/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/UserResource.java Modified

  @GetMapping("/users/{id}")
  public User retrieveUser(@PathVariable int id) {
    User user = service.findOne(id);

    if(user==null)
      throw new UserNotFoundException("id-"+ id);

    return user;
  }

  @DeleteMapping("/users/{id}")
  public void deleteUser(@PathVariable int id) {
    User user = service.deleteById(id);

    if(user==null)
      throw new UserNotFoundException("id-"+ id);
  }

  //
  // input - details of user
  // output - CREATED & Return the created URI
  @PostMapping("/users")
  public ResponseEntity<Object> createUser(@RequestBody User user) {
    User savedUser = service.save(user);
    // CREATED
    // /user/{id}     savedUser.getId()

    URI location = ServletUriComponentsBuilder
      .fromCurrentRequest()
      .path("/{id}")
      .buildAndExpand(savedUser.getId()).toUri();

    return ResponseEntity.created(location).build();

  }

Step 15 - Implementing Validations for RESTful Services

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/exception/CustomizedResponseEntityExceptionHandler.java Modified
@Override
protected ResponseEntity<Object> handleMethodArgumentNotValid(MethodArgumentNotValidException ex,
    HttpHeaders headers, HttpStatus status, WebRequest request) {
  ErrorDetails errorDetails = new ErrorDetails(new Date(), "Validation Failed",
      ex.getBindingResult().toString());
  return new ResponseEntity(errorDetails, HttpStatus.BAD_REQUEST);
}
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/User.java Modified
  @Size(min=2, message="Name should have atleast 2 characters")
  private String name;

  @Past
  private Date birthDate;
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/UserResource.java Modified
public ResponseEntity<Object> createUser(@Valid @RequestBody User user) {

Step 16 - Implementing HATEOAS for RESTful Services

/pom.xml Modified
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-hateoas</artifactId>
    </dependency>
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/UserResource.java Modified
  @GetMapping("/users/{id}")
  public Resource<User> retrieveUser(@PathVariable int id) {
    User user = service.findOne(id);

    if(user==null)
      throw new UserNotFoundException("id-"+ id);


    //"all-users", SERVER_PATH + "/users"
    //retrieveAllUsers
    Resource<User> resource = new Resource<User>(user);

    ControllerLinkBuilder linkTo =
        linkTo(methodOn(this.getClass()).retrieveAllUsers());

    resource.add(linkTo.withRel("all-users"));

    //HATEOAS

    return resource;
  }


  //HATEOAS

  @PostMapping("/users")
  public ResponseEntity<Object> createUser(@Valid @RequestBody User user) {
    User savedUser = service.save(user);
    // CREATED
    // /user/{id}     savedUser.getId()

    URI location = ServletUriComponentsBuilder
      .fromCurrentRequest()
      .path("/{id}")
      .buildAndExpand(savedUser.getId()).toUri();

    return ResponseEntity.created(location).build();

  }

Step 17 - Overview of Advanced RESTful Service Features

  • Step 18 - Internationalization for RESTful Services
  • Step 19 - Content Negotiation - Implementing Support for XML
  • Step 20 - Configuring Auto Generation of Swagger Documentation
  • Step 21 - Introduction to Swagger Documentation Format
  • Step 22 - Enhancing Swagger Documentation with Custom Annotations
  • Step 23 - Monitoring APIs with Spring Boot Actuator
  • Step 24 - Implementing Static Filtering for RESTful Service
  • Step 25 - Implementing Dynamic Filtering for RESTful Service
  • Step 26 - Versioning RESTful Services - Basic Approach with URIs
  • Step 27 - Versioning RESTful Services - Header and Content Negotiation Approach
  • Step 28 - Implementing Basic Authentication with Spring Security

Step 18 - Internationalization for RESTful Services

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/RestfulWebServicesApplication.java Modified

New Lines

import java.util.Locale;
import org.springframework.context.annotation.Bean;
import org.springframework.context.support.ResourceBundleMessageSource;
import org.springframework.web.servlet.LocaleResolver;
import org.springframework.web.servlet.i18n.SessionLocaleResolver;

  @Bean
  public LocaleResolver localeResolver() {
    SessionLocaleResolver localeResolver = new SessionLocaleResolver();
    localeResolver.setDefaultLocale(Locale.US);
    return localeResolver;
  }

  @Bean
  public ResourceBundleMessageSource messageSource() {
    ResourceBundleMessageSource messageSource = new ResourceBundleMessageSource();
    messageSource.setBasename("messages");
    return messageSource;
  }

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/helloworld/HelloWorldController.java Modified

New Lines

import java.util.Locale;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.MessageSource;
import org.springframework.web.bind.annotation.RequestHeader;

@Autowired
private MessageSource messageSource;

@GetMapping(path = "/hello-world-internationalized")
public String helloWorldInternationalized(
    @RequestHeader(name="Accept-Language", required=false) Locale locale) {
  return messageSource.getMessage("good.morning.message", null, locale);
}

/src/main/resources/messages.properties New
good.morning.message=Good Morning

/src/main/resources/messages_fr.properties New
good.morning.message=Bonjour

/src/main/resources/messages_nl.properties New
good.morning.message=Goede Morgen

Step 18 Part 2 - Simplifying Internationalization for RESTful Services

Use AcceptHeaderLocaleResolver

@SpringBootApplication
public class RestfulWebServicesApplication {

  ....

  @Bean
  public LocaleResolver localeResolver() {
    AcceptHeaderLocaleResolver localeResolver = new AcceptHeaderLocaleResolver();
    localeResolver.setDefaultLocale(Locale.US);
    return localeResolver;
  }
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/helloworld/HelloWorldController.java
@GetMapping(path = "/hello-world-internationalized")
  public String helloWorldInternationalized() {
    return messageSource.getMessage("good.morning.message", null,
                  LocaleContextHolder.getLocale());
  }

Use MessageSource configuration from application.properties

spring.messages.basename=messages

Step 19 - Content Negotiation - Implementing Support for XML

/pom.xml Modified

New Lines

    <dependency>
      <groupId>com.fasterxml.jackson.dataformat</groupId>
      <artifactId>jackson-dataformat-xml</artifactId>
    </dependency>

Step 20 - Configuring Auto Generation of Swagger Documentation

Step 21 - Introduction to Swagger Documentation Format

Step 22 - Enhancing Swagger Documentation with Custom Annotations

/pom.xml Modified

New Lines


    <dependency>
      <groupId>io.springfox</groupId>
      <artifactId>springfox-swagger2</artifactId>
      <version>2.4.0</version>
    </dependency>

    <dependency>
      <groupId>io.springfox</groupId>
      <artifactId>springfox-swagger-ui</artifactId>
      <version>2.4.0</version>
    </dependency>
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/SwaggerConfig.java New
package com.in28minutes.rest.webservices.restfulwebservices;

import java.util.Arrays;
import java.util.HashSet;
import java.util.Set;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@Configuration
@EnableSwagger2
public class SwaggerConfig {

  public static final Contact DEFAULT_CONTACT = new Contact(
      "Ranga Karanam", "http://www.in28minutes.com", "[email protected]");

  public static final ApiInfo DEFAULT_API_INFO = new ApiInfo(
      "Awesome API Title", "Awesome API Description", "1.0",
      "urn:tos", DEFAULT_CONTACT,
      "Apache 2.0", "http://www.apache.org/licenses/LICENSE-2.0");

  private static final Set<String> DEFAULT_PRODUCES_AND_CONSUMES =
      new HashSet<String>(Arrays.asList("application/json",
          "application/xml"));

  @Bean
  public Docket api() {
    return new Docket(DocumentationType.SWAGGER_2)
        .apiInfo(DEFAULT_API_INFO)
        .produces(DEFAULT_PRODUCES_AND_CONSUMES)
        .consumes(DEFAULT_PRODUCES_AND_CONSUMES);
  }
}

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/UserApiDocumentationConfig.java New
package com.in28minutes.rest.webservices.restfulwebservices;

import io.swagger.annotations.Contact;
import io.swagger.annotations.ExternalDocs;
import io.swagger.annotations.Info;
import io.swagger.annotations.License;
import io.swagger.annotations.SwaggerDefinition;

@SwaggerDefinition(
        info = @Info(
                description = "Awesome Resources",
                version = "V12.0.12",
                title = "Awesome Resource API",
                contact = @Contact(
                   name = "Ranga Karanam",
                   email = "[email protected]",
                   url = "http://www.in28minutes.com"
                ),
                license = @License(
                   name = "Apache 2.0",
                   url = "http://www.apache.org/licenses/LICENSE-2.0"
                )
        ),
        consumes = {"application/json", "application/xml"},
        produces = {"application/json", "application/xml"},
        schemes = {SwaggerDefinition.Scheme.HTTP, SwaggerDefinition.Scheme.HTTPS},
        externalDocs = @ExternalDocs(value = "Read This For Sure", url = "http://in28minutes.com")
)
public interface UserApiDocumentationConfig {

}

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/User.java Modified


@ApiModel(description="All details about the user. ")
public class User {

  private Integer id;

  @Size(min=2, message="Name should have atleast 2 characters")
  @ApiModelProperty(notes="Name should have atleast 2 characters")
  private String name;

  @Past
  @ApiModelProperty(notes="Birth date should be in the past")
  private Date birthDate;


/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/UserResource.java Modified
  @GetMapping("/users/{id}")
  public Resource<User> retrieveUser(@PathVariable int id) {
    User user = service.findOne(id);

    if(user==null)
      throw new UserNotFoundException("id-"+ id);


    //"all-users", SERVER_PATH + "/users"
    //retrieveAllUsers
    Resource<User> resource = new Resource<User>(user);

    ControllerLinkBuilder linkTo =
        linkTo(methodOn(this.getClass()).retrieveAllUsers());

    resource.add(linkTo.withRel("all-users"));

    //HATEOAS

    return resource;
  }

Step 23 - Monitoring APIs with Spring Boot Actuator

/pom.xml Modified

New Lines

    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>

    <dependency>
      <groupId>org.springframework.data</groupId>
      <artifactId>spring-data-rest-hal-browser</artifactId>
    </dependency>
application.properties Modified
management.endpoints.web.exposure.include=*

Step 24 - Implementing Static Filtering for RESTful Service

Step 25 - Implementing Dynamic Filtering for RESTful Service

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/UserApiDocumentationConfig.java Deleted
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/filtering/FilteringController.java New
package com.in28minutes.rest.webservices.restfulwebservices.filtering;

import java.util.Arrays;
import java.util.List;

import org.springframework.http.converter.json.MappingJacksonValue;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import com.fasterxml.jackson.databind.ser.FilterProvider;
import com.fasterxml.jackson.databind.ser.impl.SimpleBeanPropertyFilter;
import com.fasterxml.jackson.databind.ser.impl.SimpleFilterProvider;

@RestController
public class FilteringController {

  // field1,field2
  @GetMapping("/filtering")
  public MappingJacksonValue retrieveSomeBean() {
    SomeBean someBean = new SomeBean("value1", "value2", "value3");

    SimpleBeanPropertyFilter filter = SimpleBeanPropertyFilter.filterOutAllExcept("field1", "field2");

    FilterProvider filters = new SimpleFilterProvider().addFilter("SomeBeanFilter", filter);

    MappingJacksonValue mapping = new MappingJacksonValue(someBean);

    mapping.setFilters(filters);

    return mapping;
  }

  // field2, field3
  @GetMapping("/filtering-list")
  public MappingJacksonValue retrieveListOfSomeBeans() {
    List<SomeBean> list = Arrays.asList(new SomeBean("value1", "value2", "value3"),
        new SomeBean("value12", "value22", "value32"));

    SimpleBeanPropertyFilter filter = SimpleBeanPropertyFilter.filterOutAllExcept("field2", "field3");

    FilterProvider filters = new SimpleFilterProvider().addFilter("SomeBeanFilter", filter);

    MappingJacksonValue mapping = new MappingJacksonValue(list);

    mapping.setFilters(filters);

    return mapping;
  }

}

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/filtering/SomeBean.java New
package com.in28minutes.rest.webservices.restfulwebservices.filtering;

import com.fasterxml.jackson.annotation.JsonFilter;

@JsonFilter("SomeBeanFilter")
public class SomeBean {

  private String field1;

  private String field2;

  private String field3;

  public SomeBean(String field1, String field2, String field3) {
    super();
    this.field1 = field1;
    this.field2 = field2;
    this.field3 = field3;
  }

  public String getField1() {
    return field1;
  }

  public void setField1(String field1) {
    this.field1 = field1;
  }

  public String getField2() {
    return field2;
  }

  public void setField2(String field2) {
    this.field2 = field2;
  }

  public String getField3() {
    return field3;
  }

  public void setField3(String field3) {
    this.field3 = field3;
  }

}

Step 26 - Versioning RESTful Services - Basic Approach with URIs

Step 27 - Versioning RESTful Services - Header and Content Negotiation Approach

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/versioning/Name.java New
package com.in28minutes.rest.webservices.restfulwebservices.versioning;

public class Name {
  private String firstName;
  private String lastName;

  public Name() {
  }

  public Name(String firstName, String lastName) {
    super();
    this.firstName = firstName;
    this.lastName = lastName;
  }

  public String getFirstName() {
    return firstName;
  }

  public void setFirstName(String firstName) {
    this.firstName = firstName;
  }

  public String getLastName() {
    return lastName;
  }

  public void setLastName(String lastName) {
    this.lastName = lastName;
  }

}

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/versioning/PersonV1.java New
package com.in28minutes.rest.webservices.restfulwebservices.versioning;

public class PersonV1 {
  private String name;

  public PersonV1() {
    super();
  }

  public PersonV1(String name) {
    super();
    this.name = name;
  }

  public String getName() {
    return name;
  }

  public void setName(String name) {
    this.name = name;
  }


}

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/versioning/PersonV2.java New
package com.in28minutes.rest.webservices.restfulwebservices.versioning;

public class PersonV2 {
  private Name name;

  public PersonV2() {
    super();
  }

  public PersonV2(Name name) {
    super();
    this.name = name;
  }

  public Name getName() {
    return name;
  }

  public void setName(Name name) {
    this.name = name;
  }

}

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/versioning/PersonVersioningController.java New
package com.in28minutes.rest.webservices.restfulwebservices.versioning;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class PersonVersioningController {

  @GetMapping("v1/person")
  public PersonV1 personV1() {
    return new PersonV1("Bob Charlie");
  }

  @GetMapping("v2/person")
  public PersonV2 personV2() {
    return new PersonV2(new Name("Bob", "Charlie"));
  }

  @GetMapping(value = "/person/param", params = "version=1")
  public PersonV1 paramV1() {
    return new PersonV1("Bob Charlie");
  }

  @GetMapping(value = "/person/param", params = "version=2")
  public PersonV2 paramV2() {
    return new PersonV2(new Name("Bob", "Charlie"));
  }

  @GetMapping(value = "/person/header", headers = "X-API-VERSION=1")
  public PersonV1 headerV1() {
    return new PersonV1("Bob Charlie");
  }

  @GetMapping(value = "/person/header", headers = "X-API-VERSION=2")
  public PersonV2 headerV2() {
    return new PersonV2(new Name("Bob", "Charlie"));
  }

  @GetMapping(value = "/person/produces", produces = "application/vnd.company.app-v1+json")
  public PersonV1 producesV1() {
    return new PersonV1("Bob Charlie");
  }

  @GetMapping(value = "/person/produces", produces = "application/vnd.company.app-v2+json")
  public PersonV2 producesV2() {
    return new PersonV2(new Name("Bob", "Charlie"));
  }

}

Step 28 - Implementing Basic Authentication with Spring Security

/pom.xml Modified

New Lines

    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-security</artifactId>
    </dependency>

/src/main/resources/application.properties Modified

New Lines

spring.security.filter.dispatcher-types=request
spring.security.user.name=username
spring.security.user.password=password

Step 29 - Overview of Connecting RESTful Service to JPA

  • Step 30 - Creating User Entity and some test data
  • Step 31 - Updating GET methods on User Resource to use JPA
  • Step 32 - Updating POST and DELETE methods on User Resource to use JPA
  • Step 33 - Creating Post Entity and Many to One Relationship with User Entity
  • Step 34 - Implementing a GET service to retrieve all Posts of a User
  • Step 35 - Implementing a POST service to create a Post for a User

Step 30 - Creating User Entity and some test data

Step 31 - Updating GET methods on User Resource to use JPA

Step 32 - Updating POST and DELETE methods on User Resource to use JPA

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/User.java Modified

New Lines

@ApiModel(description="All details about the user. ")
@Entity
public class User {

  @Id
  @GeneratedValue
  private Integer id;


/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/UserJPAResource.java New
package com.in28minutes.rest.webservices.restfulwebservices.user;

import static org.springframework.hateoas.mvc.ControllerLinkBuilder.linkTo;
import static org.springframework.hateoas.mvc.ControllerLinkBuilder.methodOn;

import java.net.URI;
import java.util.List;
import java.util.Optional;

import javax.validation.Valid;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.hateoas.Resource;
import org.springframework.hateoas.mvc.ControllerLinkBuilder;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.DeleteMapping;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.servlet.support.ServletUriComponentsBuilder;

@RestController
public class UserJPAResource {

  @Autowired
  private UserDaoService service;

  @Autowired
  private UserRepository userRepository;

  @GetMapping("/jpa/users")
  public List<User> retrieveAllUsers() {
    return userRepository.findAll();
  }

  @GetMapping("/jpa/users/{id}")
  public Resource<User> retrieveUser(@PathVariable int id) {
    Optional<User> user = userRepository.findById(id);

    if(!user.isPresent())
      throw new UserNotFoundException("id-"+ id);

    //"all-users", SERVER_PATH + "/users"
    //retrieveAllUsers
    Resource<User> resource = new Resource<User>(user.get());

    ControllerLinkBuilder linkTo =
        linkTo(methodOn(this.getClass()).retrieveAllUsers());

    resource.add(linkTo.withRel("all-users"));

    //HATEOAS

    return resource;
  }

  @DeleteMapping("/jpa/users/{id}")
  public void deleteUser(@PathVariable int id) {
    User user = service.deleteById(id);

    if(user==null)
      throw new UserNotFoundException("id-"+ id);
  }

  //
  // input - details of user
  // output - CREATED & Return the created URI

  //HATEOAS

  @PostMapping("/jpa/users")
  public ResponseEntity<Object> createUser(@Valid @RequestBody User user) {
    User savedUser = service.save(user);

    URI location = ServletUriComponentsBuilder
      .fromCurrentRequest()
      .path("/{id}")
      .buildAndExpand(savedUser.getId()).toUri();

    return ResponseEntity.created(location).build();

  }
}

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/UserRepository.java New
package com.in28minutes.rest.webservices.restfulwebservices.user;

import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

@Repository
public interface UserRepository extends JpaRepository<User, Integer>{

}

/src/main/resources/application.properties Modified

New Lines

management.endpoints.web.exposure.include=*
spring.jpa.show-sql=true
spring.datasource.url=jdbc:h2:mem:testdb
spring.data.jpa.repositories.bootstrap-mode=default
spring.h2.console.enabled=true
/src/main/resources/data.sql New
insert into user values(1, sysdate(), 'AB');
insert into user values(2, sysdate(), 'Jill');
insert into user values(3, sysdate(), 'Jam');

Step 33 - Creating Post Entity and Many to One Relationship with User Entity

Step 34 - Implementing a GET service to retrieve all Posts of a User

Step 35 - Implementing a POST service to create a Post for a User

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/Post.java New
package com.in28minutes.rest.webservices.restfulwebservices.user;

import javax.persistence.Entity;
import javax.persistence.FetchType;
import javax.persistence.GeneratedValue;
import javax.persistence.Id;
import javax.persistence.ManyToOne;

import com.fasterxml.jackson.annotation.JsonIgnore;

@Entity
public class Post {

  @Id
  @GeneratedValue
  private Integer id;
  private String description;

  @ManyToOne(fetch=FetchType.LAZY)
  @JsonIgnore
  private User user;

  public Integer getId() {
    return id;
  }

  public void setId(Integer id) {
    this.id = id;
  }

  public String getDescription() {
    return description;
  }

  public void setDescription(String description) {
    this.description = description;
  }

  public User getUser() {
    return user;
  }

  public void setUser(User user) {
    this.user = user;
  }

  @Override
  public String toString() {
    return String.format("Post [id=%s, description=%s]", id, description);
  }

}

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/PostRepository.java New
package com.in28minutes.rest.webservices.restfulwebservices.user;

import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

@Repository
public interface PostRepository extends JpaRepository<Post, Integer>{

}

/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/User.java Modified

  @OneToMany(mappedBy="user")
  private List<Post> posts;


/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/UserJPAResource.java Modified

@RestController
public class UserJPAResource {

  @Autowired
  private UserRepository userRepository;

  @Autowired
  private PostRepository postRepository;

  @GetMapping("/jpa/users")
  public List<User> retrieveAllUsers() {
    return userRepository.findAll();
  }

  @GetMapping("/jpa/users/{id}")
  public Resource<User> retrieveUser(@PathVariable int id) {
    Optional<User> user = userRepository.findById(id);

    if (!user.isPresent())
      throw new UserNotFoundException("id-" + id);

    // "all-users", SERVER_PATH + "/users"
    // retrieveAllUsers
    Resource<User> resource = new Resource<User>(user.get());

    ControllerLinkBuilder linkTo = linkTo(methodOn(this.getClass()).retrieveAllUsers());

    resource.add(linkTo.withRel("all-users"));

    // HATEOAS

    return resource;
  }

  @DeleteMapping("/jpa/users/{id}")
  public void deleteUser(@PathVariable int id) {
    userRepository.deleteById(id);
  }

  //
  // input - details of user
  // output - CREATED & Return the created URI

  // HATEOAS

  @PostMapping("/jpa/users")
  public ResponseEntity<Object> createUser(@Valid @RequestBody User user) {
    User savedUser = userRepository.save(user);

    URI location = ServletUriComponentsBuilder.fromCurrentRequest().path("/{id}").buildAndExpand(savedUser.getId())
        .toUri();

    return ResponseEntity.created(location).build();

  }

  @GetMapping("/jpa/users/{id}/posts")
  public List<Post> retrieveAllUsers(@PathVariable int id) {
    Optional<User> userOptional = userRepository.findById(id);

    if(!userOptional.isPresent()) {
      throw new UserNotFoundException("id-" + id);
    }

    return userOptional.get().getPosts();
  }


  @PostMapping("/jpa/users/{id}/posts")
  public ResponseEntity<Object> createPost(@PathVariable int id, @RequestBody Post post) {

    Optional<User> userOptional = userRepository.findById(id);

    if(!userOptional.isPresent()) {
      throw new UserNotFoundException("id-" + id);
    }

    User user = userOptional.get();

    post.setUser(user);

    postRepository.save(post);

    URI location = ServletUriComponentsBuilder.fromCurrentRequest().path("/{id}").buildAndExpand(post.getId())
        .toUri();

    return ResponseEntity.created(location).build();

  }

}

/src/main/resources/data.sql Modified

New Lines

insert into user values(10001, sysdate(), 'AB');
insert into user values(10002, sysdate(), 'Jill');
insert into user values(10003, sysdate(), 'Jam');
insert into post values(11001, 'My First Post', 10001);
insert into post values(11002, 'My Second Post', 10001);
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/Post.java Deleted
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/PostRepository.java Deleted

Microservices with Spring Cloud

MICROSERVICES

  • REST
  • & Small Well Chosen Deployable Units
  • & Cloud Enabled

URLs

Application URL
Limits Service http://localhost:8080/limits
Spring Cloud Config Server http://localhost:8888/limits-service/default http://localhost:8888/limits-service/dev
Currency Converter Service - Direct Call http://localhost:8100/currency-converter/from/USD/to/INR//usr/local/var/log/rabbitmq/[email protected]/usr/local/var/log/rabbitmq/[email protected]/10
Currency Converter Service - Feign http://localhost:8100/currency-converter-feign/from/EUR/to/INR/quantity/10000
Currency Exchange Service http://localhost:8000/currency-exchange/from/EUR/to/INR http://localhost:8001/currency-exchange/from/USD/to/INR
Eureka http://localhost:8761/
Zuul - Currency Exchange & Exchange Services http://localhost:8765/currency-exchange-service/currency-exchange/from/EUR/to/INR http://localhost:8765/currency-conversion-service/currency-converter-feign/from/USD/to/INR/quantity/10

VM Argument

-Dserver.port=8001

Zipkin Installation

Quick Start Page

  • https://zipkin.io/pages/quickstart

Downloading Zipkin Jar

  • https://search.maven.org/remote_content?g=io.zipkin.java&a=zipkin-server&v=LATEST&c=exec

Command to run

RABBIT_URI=amqp://localhost java -jar zipkin-server-2.5.2-exec.jar

Commands

  • mkdir git-configuration-repo
  • cd git-configuration-repo/
  • git init
  • git add -A
  • git commit -m “first commit”

Ports

Application Port
Limits Service 8080, 8081, …
Spring Cloud Config Server 8888

Currency Exchange Service 8000, 8001, 8002, ..
Currency Conversion Service 8100, 8101, 8102, …
Netflix Eureka Naming Server 8761
Netflix Zuul API Gateway Server 8765
Zipkin Distributed Tracing Server 9411

Step by Step Details

Image Image

Step 01 - Part 1 - Introduction to Limits Microservice and Spring Cloud Config Server


Step 01 - Part 2 - Setting up Limits Microservice

Creating a Spring Project with Spring Initializr is a cake walk.

Spring Initializr http://start.spring.io/ is great tool to bootstrap your Spring Boot projects.


  • Launch Spring Initializr and choose the following
    • Choose Version 2.3.1.RELEASE or greater
    • Choose Group as shown in the figure
    • Choose Artifact as shown in the figure
    • Choose Dependencies as shown in the figure
  • Click Generate Project.
  • Import the project into Eclipse.
  • If you want to understand all the files that are part of this project, you can go here.

Step 02 - Creating a hard coded limits service

Step 03 - Enhance limits service to pick up configuration from application properties

/limits-service/src/main/java/com/in28minutes/microservices/limitsservice/Configuration.java New

package com.in28minutes.microservices.limitsservice;

import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;

@Component
@ConfigurationProperties("limits-service")
public class Configuration {

  private int minimum;
  private int maximum;

  public void setMinimum(int minimum) {
    this.minimum = minimum;
  }

  public void setMaximum(int maximum) {
    this.maximum = maximum;
  }

  public int getMinimum() {
    return minimum;
  }

  public int getMaximum() {
    return maximum;
  }

}

/limits-service/src/main/java/com/in28minutes/microservices/limitsservice/LimitsConfigurationController.java New

package com.in28minutes.microservices.limitsservice;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import com.in28minutes.microservices.limitsservice.bean.LimitConfiguration;

@RestController
public class LimitsConfigurationController {

  @Autowired
  private Configuration configuration;

  @GetMapping("/limits")
  public LimitConfiguration retrieveLimitsFromConfigurations() {
    return new LimitConfiguration(configuration.getMaximum(),
        configuration.getMinimum());
  }

}

/limits-service/src/main/java/com/in28minutes/microservices/limitsservice/bean/LimitConfiguration.java New

package com.in28minutes.microservices.limitsservice.bean;

public class LimitConfiguration {
  private int maximum;
  private int minimum;

  protected LimitConfiguration() {

  }

  public LimitConfiguration(int maximum, int minimum) {
    super();
    this.maximum = maximum;
    this.minimum = minimum;
  }

  public int getMaximum() {
    return maximum;
  }

  public int getMinimum() {
    return minimum;
  }

}

/limits-service/src/main/resources/application.properties Modified

New Lines

spring.application.name=limits-service
limits-service.minimum=9
limits-service.maximum=999

Step 04 - Setting up Spring Cloud Config Server

Creating a Spring Project with Spring Initializr is a cake walk.

Spring Initializr http://start.spring.io/ is great tool to bootstrap your Spring Boot projects.


  • Launch Spring Initializr and choose the following
    • Choose Version 2.3.1.RELEASE or greater
    • Choose Group as shown in the figure
    • Choose Artifact as shown in the figure
    • Choose Dependencies as shown in the figure
  • Click Generate Project.
  • Import the project into Eclipse.
  • If you want to understand all the files that are part of this project, you can go here.

Step 05 - Installing Git

Step 06 - Creating Local Git Repository

Step 07 - Connect Spring Cloud Config Server to Local Git Repository

Step 08 - Configuration for Multiple Environments in Git Repository

/git-localconfig-repo/limits-service-dev.properties New

limits-service.minimum=1
limits-service.maximum=111

/git-localconfig-repo/limits-service-qa.properties New

limits-service.minimum=2
limits-service.maximum=222

/git-localconfig-repo/limits-service.properties New

limits-service.minimum=8
limits-service.maximum=888

/spring-cloud-config-server/src/main/java/com/in28minutes/microservices/springcloudconfigserver/SpringCloudConfigServerApplication.java Modified

package com.in28minutes.microservices.springcloudconfigserver;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.config.server.EnableConfigServer;

@EnableConfigServer
@SpringBootApplication
public class SpringCloudConfigServerApplication {

  public static void main(String[] args) {
    SpringApplication.run(SpringCloudConfigServerApplication.class, args);
  }
}

/spring-cloud-config-server/src/main/resources/application.properties New

spring.application.name=spring-cloud-config-server
server.port=8888
spring.cloud.config.server.git.uri=file:///in28Minutes/git/spring-micro-services/03.microservices/git-localconfig-repo

Step 09 - Connect Limits Service to Spring Cloud Config Server

/limits-service/src/main/resources/application.properties Deleted

/limits-service/src/main/resources/bootstrap.properties New

spring.application.name=limits-service
spring.cloud.config.uri=http://localhost:8888

Step 10 - Configuring Profiles for Limits Service

Step 11 - A review of Spring Cloud Config Server

/limits-service/src/main/resources/bootstrap.properties Modified New Lines

spring.profiles.active=qa

Step 12 - Introduction to Currency Conversion and Currency Exchange Microservices

Image Image

Step 13 - Setting up Currency Exchange Microservice

Creating a Spring Project with Spring Initializr is a cake walk.

Spring Initializr http://start.spring.io/ is great tool to bootstrap your Spring Boot projects.


  • Launch Spring Initializr and choose the following
    • Choose Version 2.3.1.RELEASE or greater
    • Choose Group as shown in the figure
    • Choose Artifact as shown in the figure
    • Choose Dependencies as shown in the figure
  • Click Generate Project.
  • Import the project into Eclipse.
  • If you want to understand all the files that are part of this project, you can go here.

Step 14 - Create a simple hard coded currency exchange service

Step 15 - Setting up Dynamic Port in the the Response

Step 16 - Configure JPA and Initialized Data

Step 17 - Create a JPA Repository

/currency-exchange-service/pom.xml New

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.in28minutes.microservices</groupId>
  <artifactId>currency-exchange-service</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>jar</packaging>

  <name>currency-exchange-service</name>
  <description>Demo project for Spring Boot</description>

  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.3.1.RELEASE</version>
    <relativePath/> <!-- lookup parent from repository -->
  </parent>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    <java.version>1.8</java.version>
<maven-jar-plugin.version>3.1.1</maven-jar-plugin.version>
    <spring-cloud.version>Finchley.M8</spring-cloud.version>
  </properties>

  <dependencies>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-config</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-data-jpa</artifactId>
    </dependency>
    <dependency>
      <groupId>com.h2database</groupId>
      <artifactId>h2</artifactId>
    </dependency>


    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-devtools</artifactId>
      <scope>runtime</scope>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-test</artifactId>
      <scope>test</scope>
    </dependency>
  </dependencies>

  <dependencyManagement>
    <dependencies>
      <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-dependencies</artifactId>
        <version>${spring-cloud.version}</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
    </dependencies>
  </dependencyManagement>

  <build>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
      </plugin>
    </plugins>
  </build>



</project>

/currency-exchange-service/src/main/java/com/in28minutes/microservices/currencyexchangeservice/CurrencyExchangeController.java New

package com.in28minutes.microservices.currencyexchangeservice;

import java.math.BigDecimal;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.core.env.Environment;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class CurrencyExchangeController {

  @Autowired
  private Environment environment;

  @Autowired
  private ExchangeValueRepository repository;

  @GetMapping("/currency-exchange/from/{from}/to/{to}")
  public ExchangeValue retrieveExchangeValue
    (@PathVariable String from, @PathVariable String to){

    ExchangeValue exchangeValue =
        repository.findByFromAndTo(from, to);

    exchangeValue.setPort(
        Integer.parseInt(environment.getProperty("local.server.port")));

    return exchangeValue;
  }
}

/currency-exchange-service/src/main/java/com/in28minutes/microservices/currencyexchangeservice/CurrencyExchangeServiceApplication.java New

package com.in28minutes.microservices.currencyexchangeservice;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class CurrencyExchangeServiceApplication {

  public static void main(String[] args) {
    SpringApplication.run(CurrencyExchangeServiceApplication.class, args);
  }
}

/currency-exchange-service/src/main/java/com/in28minutes/microservices/currencyexchangeservice/ExchangeValue.java New

package com.in28minutes.microservices.currencyexchangeservice;

import java.math.BigDecimal;

import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.Id;

@Entity
public class ExchangeValue {

  @Id
  private Long id;

  @Column(name="currency_from")
  private String from;

  @Column(name="currency_to")
  private String to;

  private BigDecimal conversionMultiple;
  private int port;

  public ExchangeValue() {

  }


  public ExchangeValue(Long id, String from, String to, BigDecimal conversionMultiple) {
    super();
    this.id = id;
    this.from = from;
    this.to = to;
    this.conversionMultiple = conversionMultiple;
  }

  public Long getId() {
    return id;
  }

  public String getFrom() {
    return from;
  }

  public String getTo() {
    return to;
  }

  public BigDecimal getConversionMultiple() {
    return conversionMultiple;
  }

  public int getPort() {
    return port;
  }

  public void setPort(int port) {
    this.port = port;
  }

}

/currency-exchange-service/src/main/java/com/in28minutes/microservices/currencyexchangeservice/ExchangeValueRepository.java New

package com.in28minutes.microservices.currencyexchangeservice;

import org.springframework.data.jpa.repository.JpaRepository;

public interface ExchangeValueRepository extends
    JpaRepository<ExchangeValue, Long>{
  ExchangeValue findByFromAndTo(String from, String to);
}

/currency-exchange-service/src/main/resources/application.properties New

spring.application.name=currency-exchange-service
server.port=8000

spring.jpa.show-sql=true
spring.datasource.url=jdbc:h2:mem:testdb
spring.data.jpa.repositories.bootstrap-mode=default
spring.h2.console.enabled=true

/currency-exchange-service/src/main/resources/data.sql New

insert into exchange_value(id,currency_from,currency_to,conversion_multiple,port)
values(10001,'USD','INR',65,0);
insert into exchange_value(id,currency_from,currency_to,conversion_multiple,port)
values(10002,'EUR','INR',75,0);
insert into exchange_value(id,currency_from,currency_to,conversion_multiple,port)
values(10003,'AUD','INR',25,0);

/currency-exchange-service/src/test/java/com/in28minutes/microservices/currencyexchangeservice/CurrencyExchangeServiceApplicationTests.java New

package com.in28minutes.microservices.currencyexchangeservice;

import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

@RunWith(SpringRunner.class)
@SpringBootTest
public class CurrencyExchangeServiceApplicationTests {

  @Test
  public void contextLoads() {
  }

}

Step 18 - Setting up Currency Conversion Microservice

Creating a Spring Project with Spring Initializr is a cake walk.

Spring Initializr http://start.spring.io/ is great tool to bootstrap your Spring Boot projects.


  • Launch Spring Initializr and choose the following
    • Choose Version 2.3.1.RELEASE or greater
    • Choose Group as shown in the figure
    • Choose Artifact as shown in the figure
    • Choose Dependencies as shown in the figure
  • Click Generate Project.
  • Import the project into Eclipse.
  • If you want to understand all the files that are part of this project, you can go here.

Step 19 - Creating a service for currency conversion

Step 20 - Invoking Currency Exchange Microservice from Currency Conversion Microservice

/currency-conversion-service/pom.xml New

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.in28minutes.microservices</groupId>
  <artifactId>currency-conversion-service</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>jar</packaging>

  <name>currency-conversion-service</name>
  <description>Demo project for Spring Boot</description>

  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.3.1.RELEASE</version>
    <relativePath/> <!-- lookup parent from repository -->
  </parent>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    <java.version>1.8</java.version>
<maven-jar-plugin.version>3.1.1</maven-jar-plugin.version>
    <spring-cloud.version>Finchley.M8</spring-cloud.version>
  </properties>

  <dependencies>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-config</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-devtools</artifactId>
      <scope>runtime</scope>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-test</artifactId>
      <scope>test</scope>
    </dependency>
  </dependencies>

  <dependencyManagement>
    <dependencies>
      <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-dependencies</artifactId>
        <version>${spring-cloud.version}</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
    </dependencies>
  </dependencyManagement>

  <build>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
      </plugin>
    </plugins>
  </build>



</project>

/currency-conversion-service/src/main/java/com/in28minutes/microservices/currencyconversionservice/CurrencyConversionBean.java New

package com.in28minutes.microservices.currencyconversionservice;

import java.math.BigDecimal;

public class CurrencyConversionBean {
  private Long id;
  private String from;
  private String to;
  private BigDecimal conversionMultiple;
  private BigDecimal quantity;
  private BigDecimal totalCalculatedAmount;
  private int port;

  public CurrencyConversionBean() {

  }

  public CurrencyConversionBean(Long id, String from, String to, BigDecimal conversionMultiple, BigDecimal quantity,
      BigDecimal totalCalculatedAmount, int port) {
    super();
    this.id = id;
    this.from = from;
    this.to = to;
    this.conversionMultiple = conversionMultiple;
    this.quantity = quantity;
    this.totalCalculatedAmount = totalCalculatedAmount;
    this.port = port;
  }

  public Long getId() {
    return id;
  }

  public void setId(Long id) {
    this.id = id;
  }

  public String getFrom() {
    return from;
  }

  public void setFrom(String from) {
    this.from = from;
  }

  public String getTo() {
    return to;
  }

  public void setTo(String to) {
    this.to = to;
  }

  public BigDecimal getConversionMultiple() {
    return conversionMultiple;
  }

  public void setConversionMultiple(BigDecimal conversionMultiple) {
    this.conversionMultiple = conversionMultiple;
  }

  public BigDecimal getQuantity() {
    return quantity;
  }

  public void setQuantity(BigDecimal quantity) {
    this.quantity = quantity;
  }

  public BigDecimal getTotalCalculatedAmount() {
    return totalCalculatedAmount;
  }

  public void setTotalCalculatedAmount(BigDecimal totalCalculatedAmount) {
    this.totalCalculatedAmount = totalCalculatedAmount;
  }

  public int getPort() {
    return port;
  }

  public void setPort(int port) {
    this.port = port;
  }

}

/currency-conversion-service/src/main/java/com/in28minutes/microservices/currencyconversionservice/CurrencyConversionController.java New

package com.in28minutes.microservices.currencyconversionservice;

import java.math.BigDecimal;
import java.util.HashMap;
import java.util.Map;

import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

@RestController
public class CurrencyConversionController {

  @GetMapping("/currency-converter/from/{from}/to/{to}/quantity/{quantity}")
  public CurrencyConversionBean convertCurrency(@PathVariable String from,
      @PathVariable String to,
      @PathVariable BigDecimal quantity
      ){

    Map<String, String> uriVariables = new HashMap<>();
    uriVariables.put("from", from);
    uriVariables.put("to", to);

    ResponseEntity<CurrencyConversionBean> responseEntity = new RestTemplate().getForEntity(
        "http://localhost:8000/currency-exchange/from/{from}/to/{to}",
        CurrencyConversionBean.class,
        uriVariables );

    CurrencyConversionBean response = responseEntity.getBody();

    return new CurrencyConversionBean(response.getId(),from,to,response.getConversionMultiple(),
        quantity,quantity.multiply(response.getConversionMultiple()),response.getPort());
  }

}

/currency-conversion-service/src/main/java/com/in28minutes/microservices/currencyconversionservice/CurrencyConversionServiceApplication.java New

package com.in28minutes.microservices.currencyconversionservice;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class CurrencyConversionServiceApplication {

  public static void main(String[] args) {
    SpringApplication.run(CurrencyConversionServiceApplication.class, args);
  }
}

/currency-conversion-service/src/main/resources/application.properties New

spring.application.name=currency-conversion-service
server.port=8100

/currency-conversion-service/src/test/java/com/in28minutes/microservices/currencyconversionservice/CurrencyConversionServiceApplicationTests.java New

package com.in28minutes.microservices.currencyconversionservice;

import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

@RunWith(SpringRunner.class)
@SpringBootTest
public class CurrencyConversionServiceApplicationTests {

  @Test
  public void contextLoads() {
  }

}

Step 21 - Using Feign REST Client for Service Invocation

Step 22 - Setting up client side load balancing with Ribbon


Step 23 - Running client side load balancing with Ribbon

/currency-conversion-service/pom.xml Modified New Lines

     <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-openfeign</artifactId>
    </dependency>

    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-netflix-ribbon</artifactId>
    </dependency>

/currency-conversion-service/src/main/java/com/in28minutes/microservices/currencyconversionservice/CurrencyConversionController.java Modified


@RestController
public class CurrencyConversionController {

  @Autowired
  private CurrencyExchangeServiceProxy proxy;

  @GetMapping("/currency-converter/from/{from}/to/{to}/quantity/{quantity}")
  public CurrencyConversionBean convertCurrency(@PathVariable String from, @PathVariable String to,
      @PathVariable BigDecimal quantity) {

    // Feign - Problem 1
    Map<String, String> uriVariables = new HashMap<>();
    uriVariables.put("from", from);
    uriVariables.put("to", to);

    ResponseEntity<CurrencyConversionBean> responseEntity = new RestTemplate().getForEntity(
        "http://localhost:8000/currency-exchange/from/{from}/to/{to}", CurrencyConversionBean.class,
        uriVariables);

    CurrencyConversionBean response = responseEntity.getBody();

    return new CurrencyConversionBean(response.getId(), from, to, response.getConversionMultiple(), quantity,
        quantity.multiply(response.getConversionMultiple()), response.getPort());
  }

  @GetMapping("/currency-converter-feign/from/{from}/to/{to}/quantity/{quantity}")
  public CurrencyConversionBean convertCurrencyFeign(@PathVariable String from, @PathVariable String to,
      @PathVariable BigDecimal quantity) {

    CurrencyConversionBean response = proxy.retrieveExchangeValue(from, to);

    return new CurrencyConversionBean(response.getId(), from, to, response.getConversionMultiple(), quantity,
        quantity.multiply(response.getConversionMultiple()), response.getPort());
  }

}

/currency-conversion-service/src/main/java/com/in28minutes/microservices/currencyconversionservice/CurrencyConversionServiceApplication.java Modified New Lines


@SpringBootApplication
@EnableFeignClients("com.in28minutes.microservices.currencyconversionservice")
public class CurrencyConversionServiceApplication {


/currency-conversion-service/src/main/java/com/in28minutes/microservices/currencyconversionservice/CurrencyExchangeServiceProxy.java New

package com.in28minutes.microservices.currencyconversionservice;

import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.cloud.netflix.ribbon.RibbonClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;

//@FeignClient(name="currency-exchange-service", url="localhost:8000")
@FeignClient(name="currency-exchange-service")
@RibbonClient(name="currency-exchange-service")
public interface CurrencyExchangeServiceProxy {
  @GetMapping("/currency-exchange/from/{from}/to/{to}")
  public CurrencyConversionBean retrieveExchangeValue
    (@PathVariable("from") String from, @PathVariable("to") String to);
}

/currency-conversion-service/src/main/resources/application.properties Modified New Lines

currency-exchange-service.ribbon.listOfServers=http://localhost:8000,http://localhost:8001

Step 24 - Understand the need for a Naming Server

Image Image

Step 25 - Setting up Eureka Naming Server

Creating a Spring Project with Spring Initializr is a cake walk.

Spring Initializr http://start.spring.io/ is great tool to bootstrap your Spring Boot projects.


  • Launch Spring Initializr and choose the following
    • Choose Version 2.3.1.RELEASE or greater
    • Choose Group as shown in the figure
    • Choose Artifact as shown in the figure
    • Choose Dependencies as shown in the figure
  • Click Generate Project.
  • Import the project into Eclipse.
  • If you want to understand all the files that are part of this project, you can go here.

/netflix-eureka-naming-server/pom.xml New

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.in28minutes.microservices</groupId>
  <artifactId>netflix-eureka-naming-server</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>jar</packaging>

  <name>netflix-eureka-naming-server</name>
  <description>Demo project for Spring Boot</description>

  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.3.1.RELEASE</version>
    <relativePath/> <!-- lookup parent from repository -->
  </parent>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    <java.version>1.8</java.version>
<maven-jar-plugin.version>3.1.1</maven-jar-plugin.version>
    <spring-cloud.version>Finchley.M8</spring-cloud.version>
  </properties>

  <dependencies>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-config</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
    </dependency>

    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-devtools</artifactId>
      <scope>runtime</scope>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-test</artifactId>
      <scope>test</scope>
    </dependency>
  </dependencies>

  <dependencyManagement>
    <dependencies>
      <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-dependencies</artifactId>
        <version>${spring-cloud.version}</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
    </dependencies>
  </dependencyManagement>

  <build>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
      </plugin>
    </plugins>
  </build>



</project>

/netflix-eureka-naming-server/src/main/java/com/in28minutes/microservices/netflixeurekanamingserver/NetflixEurekaNamingServerApplication.java New

package com.in28minutes.microservices.netflixeurekanamingserver;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

@SpringBootApplication
@EnableEurekaServer
public class NetflixEurekaNamingServerApplication {

  public static void main(String[] args) {
    SpringApplication.run(NetflixEurekaNamingServerApplication.class, args);
  }
}

/netflix-eureka-naming-server/src/main/resources/application.properties New


spring.application.name=netflix-eureka-naming-server
server.port=8761

eureka.client.register-with-eureka=false
eureka.client.fetch-registry=false

/netflix-eureka-naming-server/src/test/java/com/in28minutes/microservices/netflixeurekanamingserver/NetflixEurekaNamingServerApplicationTests.java New

package com.in28minutes.microservices.netflixeurekanamingserver;

import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

@RunWith(SpringRunner.class)
@SpringBootTest
public class NetflixEurekaNamingServerApplicationTests {

  @Test
  public void contextLoads() {
  }

}

Step 26 - Connecting Currency Conversion Microservice to Eureka

/currency-conversion-service/pom.xml Modified New Lines

    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    </dependency>

/currency-conversion-service/src/main/resources/application.properties Modified New Lines

eureka.client.service-url.default-zone=http://localhost:8761/eureka
#currency-exchange-service.ribbon.listOfServers=http://localhost:8000,http://localhost:8001

/currency-conversion-service/src/main/java/com/in28minutes/microservices/currencyconversionservice/CurrencyConversionServiceApplication.java Modified New Lines

@SpringBootApplication
@EnableDiscoveryClient
public class CurrencyConversionServiceApplication {

Step 27 - Connecting Currency Exchange Microservice to Eureka

/currency-exchange-service/pom.xml Modified New Lines

    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    </dependency>

/currency-exchange-service/src/main/java/com/in28minutes/microservices/currencyexchangeservice/CurrencyExchangeServiceApplication.java Modified New Lines

@SpringBootApplication
@EnableDiscoveryClient
public class CurrencyExchangeServiceApplication {

/currency-exchange-service/src/main/resources/application.properties Modified New Lines

eureka.client.service-url.default-zone=http://localhost:8761/eureka

Step 28 - Distributing calls using Eureka and Ribbon

/currency-conversion-service/src/main/java/com/in28minutes/microservices/currencyconversionservice/CurrencyConversionServiceApplication.java Modified New Lines

@SpringBootApplication
@EnableFeignClients("com.in28minutes.microservices.currencyconversionservice")
@EnableDiscoveryClient
public class CurrencyConversionServiceApplication {

Step 29 - A review of implementing Eureka, Ribbon and Feign


Step 30 - Introduction to API Gateways

  • Authentication, authorization and security
  • Rate Limits
  • Fault Tolerance
  • Service Aggregation

Step 31 - Setting up Zuul API Gateway

Creating a Spring Project with Spring Initializr is a cake walk.

Spring Initializr http://start.spring.io/ is great tool to bootstrap your Spring Boot projects.


  • Launch Spring Initializr and choose the following
    • Choose Version 2.3.1.RELEASE or greater
    • Choose Group as shown in the figure
    • Choose Artifact as shown in the figure
    • Choose Dependencies as shown in the figure
  • Click Generate Project.
  • Import the project into Eclipse.
  • If you want to understand all the files that are part of this project, you can go here.

Step 32 - Implementing Zuul Logging Filter

Step 33 - Executing a request through Zuul API Gateway

Step 34 - Setting up Zuul API Gateway between microservice invocations

/currency-conversion-service/src/main/java/com/in28minutes/microservices/currencyconversionservice/CurrencyConversionController.java Modified

New Lines


@RestController
public class CurrencyConversionController {

  private Logger logger = LoggerFactory.getLogger(this.getClass());

  @GetMapping("/currency-converter/from/{from}/to/{to}/quantity/{quantity}")
  public CurrencyConversionBean convertCurrency(@PathVariable String from, @PathVariable String to,
      @PathVariable BigDecimal quantity) {

    // Feign - Problem 1
    Map<String, String> uriVariables = new HashMap<>();
    uriVariables.put("from", from);
    uriVariables.put("to", to);

    ResponseEntity<CurrencyConversionBean> responseEntity = new RestTemplate().getForEntity(
        "http://localhost:8000/currency-exchange/from/{from}/to/{to}", CurrencyConversionBean.class,
        uriVariables);

    CurrencyConversionBean response = responseEntity.getBody();

    return new CurrencyConversionBean(response.getId(), from, to, response.getConversionMultiple(), quantity,
        quantity.multiply(response.getConversionMultiple()), response.getPort());
  }

  @GetMapping("/currency-converter-feign/from/{from}/to/{to}/quantity/{quantity}")
  public CurrencyConversionBean convertCurrencyFeign(@PathVariable String from, @PathVariable String to,
      @PathVariable BigDecimal quantity) {

    CurrencyConversionBean response = proxy.retrieveExchangeValue(from, to);

    logger.info("{}", response);

    return new CurrencyConversionBean(response.getId(), from, to, response.getConversionMultiple(), quantity,
        quantity.multiply(response.getConversionMultiple()), response.getPort());
  }

}

/currency-conversion-service/src/main/java/com/in28minutes/microservices/currencyconversionservice/CurrencyExchangeServiceProxy.java Modified

New Lines


//@FeignClient(name="currency-exchange-service", url="localhost:8000")
//@FeignClient(name="currency-exchange-service")
@FeignClient(name="netflix-zuul-api-gateway-server")
@RibbonClient(name="currency-exchange-service")
public interface CurrencyExchangeServiceProxy {
  //@GetMapping("/currency-exchange/from/{from}/to/{to}")
  @GetMapping("/currency-exchange-service/currency-exchange/from/{from}/to/{to}")
  public CurrencyConversionBean retrieveExchangeValue
    (@PathVariable("from") String from, @PathVariable("to") String to);
}
/currency-exchange-service/src/main/java/com/in28minutes/microservices/currencyexchangeservice/CurrencyExchangeController.java Modified

New Lines

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

private Logger logger = LoggerFactory.getLogger(this.getClass());

logger.info("{}", exchangeValue);
/netflix-zuul-api-gateway-server/pom.xml New
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.in28minutes.microservices</groupId>
  <artifactId>netflix-zuul-api-gateway-server</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>jar</packaging>

  <name>netflix-zuul-api-gateway-server</name>
  <description>Demo project for Spring Boot</description>

  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.3.1.RELEASE</version>
    <relativePath/> <!-- lookup parent from repository -->
  </parent>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    <java.version>1.8</java.version>
<maven-jar-plugin.version>3.1.1</maven-jar-plugin.version>
    <spring-cloud.version>Finchley.M8</spring-cloud.version>
  </properties>

  <dependencies>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    </dependency>

    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-netflix-zuul</artifactId>
    </dependency>

    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-test</artifactId>
      <scope>test</scope>
    </dependency>
  </dependencies>

  <dependencyManagement>
    <dependencies>
      <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-dependencies</artifactId>
        <version>${spring-cloud.version}</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
    </dependencies>
  </dependencyManagement>

  <build>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
      </plugin>
    </plugins>
  </build>



</project>

/netflix-zuul-api-gateway-server/src/main/java/com/in28minutes/microservices/netflixzuulapigatewayserver/NetflixZuulApiGatewayServerApplication.java New
package com.in28minutes.microservices.netflixzuulapigatewayserver;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.netflix.zuul.EnableZuulProxy;

@EnableZuulProxy
@EnableDiscoveryClient
@SpringBootApplication
public class NetflixZuulApiGatewayServerApplication {

  public static void main(String[] args) {
    SpringApplication.run(NetflixZuulApiGatewayServerApplication.class, args);
  }
}

/netflix-zuul-api-gateway-server/src/main/java/com/in28minutes/microservices/netflixzuulapigatewayserver/ZuulLoggingFilter.java New
package com.in28minutes.microservices.netflixzuulapigatewayserver;

import javax.servlet.http.HttpServletRequest;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;

import com.netflix.zuul.ZuulFilter;
import com.netflix.zuul.context.RequestContext;

@Component
public class ZuulLoggingFilter extends ZuulFilter{

  private Logger logger = LoggerFactory.getLogger(this.getClass());

  @Override
  public boolean shouldFilter() {
    return true;
  }

  @Override
  public Object run() {
    HttpServletRequest request =
        RequestContext.getCurrentContext().getRequest();
    logger.info("request -> {} request uri -> {}",
        request, request.getRequestURI());
    return null;
  }

  @Override
  public String filterType() {
    return "pre";
  }

  @Override
  public int filterOrder() {
    return 1;
  }
}

/netflix-zuul-api-gateway-server/src/main/resources/application.properties New
spring.application.name=netflix-zuul-api-gateway-server
server.port=8765
eureka.client.service-url.default-zone=http://localhost:8761/eureka

/netflix-zuul-api-gateway-server/src/test/java/com/in28minutes/microservices/netflixzuulapigatewayserver/NetflixZuulApiGatewayServerApplicationTests.java New
package com.in28minutes.microservices.netflixzuulapigatewayserver;

import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

@RunWith(SpringRunner.class)
@SpringBootTest
public class NetflixZuulApiGatewayServerApplicationTests {

  @Test
  public void contextLoads() {
  }

}

Step 35 - Introduction to Distributed Tracing

Step 36 - Implementing Spring Cloud Sleuth

/currency-conversion-service/pom.xml Modified New Lines

    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-sleuth</artifactId>
    </dependency>


/currency-conversion-service/src/main/java/com/in28minutes/microservices/currencyconversionservice/CurrencyConversionServiceApplication.java Modified New Lines

  @Bean
  public Sampler defaultSampler(){
    return Sampler.ALWAYS_SAMPLE;
  }

/currency-exchange-service/pom.xml Modified New Lines

    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-sleuth</artifactId>
    </dependency>

/currency-exchange-service/src/main/java/com/in28minutes/microservices/currencyexchangeservice/CurrencyExchangeServiceApplication.java Modified New Lines

  @Bean
  public Sampler defaultSampler(){
    return Sampler.ALWAYS_SAMPLE;
  }

/netflix-zuul-api-gateway-server/pom.xml Modified New Lines

    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-sleuth</artifactId>
    </dependency>

/netflix-zuul-api-gateway-server/src/main/java/com/in28minutes/microservices/netflixzuulapigatewayserver/NetflixZuulApiGatewayServerApplication.java Modified New Lines


  @Bean
  public AlwaysSampler defaultSampler(){
    return new AlwaysSampler();
  }

Step 37 - Introduction to Distributed Tracing with Zipkin


Step 38 - Installing Rabbit MQ

Windows
  • https://www.rabbitmq.com/install-windows.html
  • https://www.rabbitmq.com/which-erlang.html
  • http://www.erlang.org/downloads
  • Video - https://www.youtube.com/watch?v=gKzKUmtOwR4
Mac
  • https://www.rabbitmq.com/install-homebrew.html

Step 39 - Setting up Distributed Tracing with Zipkin

Quick Start Page

  • https://zipkin.io/pages/quickstart

Downloading Zipkin Jar

  • https://search.maven.org/remote_content?g=io.zipkin.java&a=zipkin-server&v=LATEST&c=exec

Command to run

RABBIT_URI=amqp://localhost java -jar zipkin-server-2.5.2-exec.jar

Step 40 - Connecting microservices to Zipkin

Step 41 - Using Zipkin UI Dashboard to trace requests

/currency-conversion-service/pom.xml Modified New Lines

    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-sleuth-zipkin</artifactId>
    </dependency>

    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-bus-amqp</artifactId>
    </dependency>

/currency-exchange-service/pom.xml Modified New Lines

    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-sleuth-zipkin</artifactId>
    </dependency>

    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-bus-amqp</artifactId>
    </dependency>

/netflix-zuul-api-gateway-server/pom.xml Modified New Lines

    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-sleuth-zipkin</artifactId>
    </dependency>

    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-bus-amqp</artifactId>
    </dependency>

Step 43 - Implementing Spring Cloud Bus

  • http://localhost:8080/actuator/refresh
  • http://localhost:8080/actuator/bus-refresh

bootstrap.properties Modified

management.endpoints.web.exposure.include=*

Step 44 - Fault Tolerance with Hystrix

/03.microservices/limits-service/pom.xml Modified New Lines

    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-netflix-hystrix</artifactId>
    </dependency>

/03.microservices/limits-service/src/main/java/com/in28minutes/microservices/limitsservice/LimitsConfigurationController.java Modified New Lines

@RestController
public class LimitsConfigurationController {


  @GetMapping("/fault-tolerance-example")
  @HystrixCommand(fallbackMethod="fallbackRetrieveConfiguration")
  public LimitConfiguration retrieveConfiguration() {
    throw new RuntimeException("Not available");
  }

  public LimitConfiguration fallbackRetrieveConfiguration() {
    return new LimitConfiguration(999, 9);
  }

}

/03.microservices/limits-service/src/main/java/com/in28minutes/microservices/limitsservice/LimitsServiceApplication.java Modified New Lines


@SpringBootApplication
@EnableHystrix
public class LimitsServiceApplication {


More Reading about Microservices

  • Design and Governance of Microservices
    • https://martinfowler.com/microservices/
  • 12 Factor App
    • https://12factor.net/
    • https://dzone.com/articles/the-12-factor-app-a-java-developers-perspective
  • Spring Cloud
    • http://projects.spring.io/spring-cloud/

Just Released
